Distribution

A reliable power supply starts with a well-organised distribution system. With Bredenoord’s distribution solutions – such as distribution boards, synchronisation cabinets, transformers and cables – you can ensure the safe and efficient distribution of electricity. Whether for temporary installations, grid congestion or complex projects, we offer a solution that is perfectly tailored to your situation.

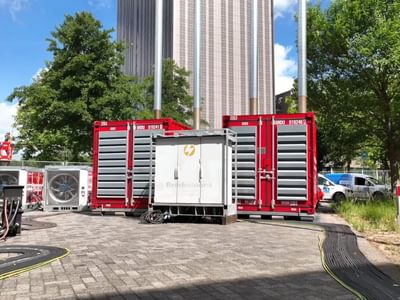

Bredenoord distribution

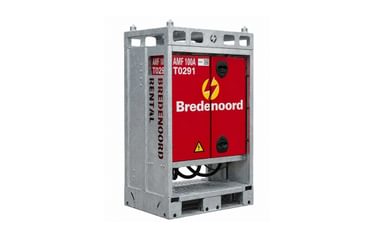

AMF100 start stop control

Automatic and start-stop controls

Nominal voltage range (Volts) 231V - 400V
Rated current 100 A - 2,000 A
400 V measurement 3 phases + neutral

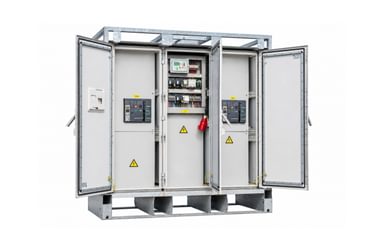

Power distribution system - open

Power distribution system

Connections DIN00, DIN3, 630 A, Powerlock
Number of connections Up to 18, depending on the version
Available current 800 A, 1,250 A, or 2,000 A

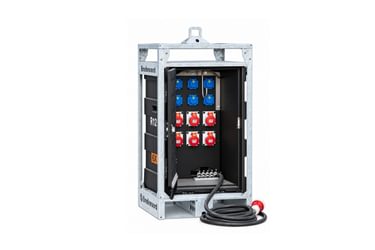

Distribution box 6x 32 A, 6x 230 V - front

Distribution boxes

Connections 230 V, 16 A, 32 A, 63 A, and 125 A
Number of connections Up to 14, depending on the model
Loop-through capability 32 A, 63 A, or 125 A, depending on the model

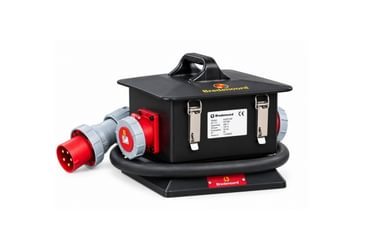

Distribution block 125 A - front

Distribution blocks

Number of inputs 1
Number of outputs 2
Configuration 32 A to 2x 16 A; 63 A to 2x 32 A; 125 A to 2x 63 A

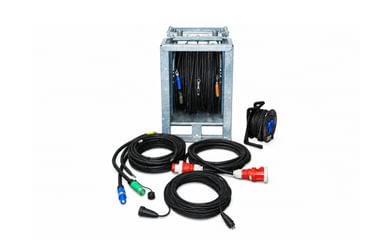

Assortment of Bredenoord cables

Cables

Cable types Extension, power, grounding, and medium voltage cables
Available lengths Up to 90 meters, depending on the version
Conductor cross-sections From 4 to 240 mm²

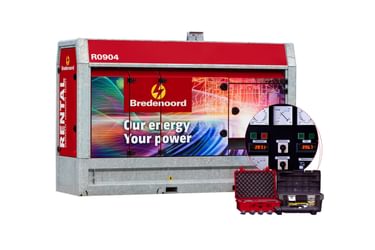

Synchronous grid take over

Synchronous grid take-over

Power Range 100 kVA - 2000 kVA
Nominal voltage range (Volts) 230V - 400V
Frequency 50 Hz

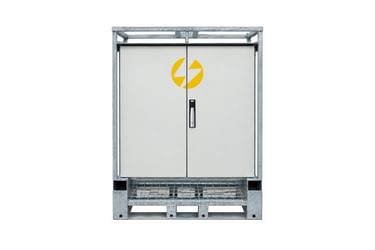

synchronizing box

Synchronizing box

Dimensions (L x W x H) 1.27 x 1.71 x 0.55m
Weight 335 kg
Rated current 1,000 A - A

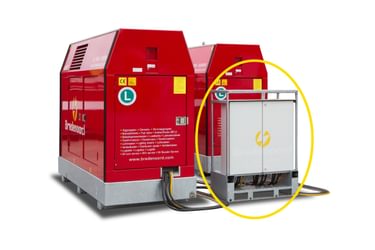

Power Management setup next to 2 generators

Power management

Dimensions (L x W x H) 0.6 x 1.1 x 1.56m
Weight 285 kg
Type PMM_NC 500A

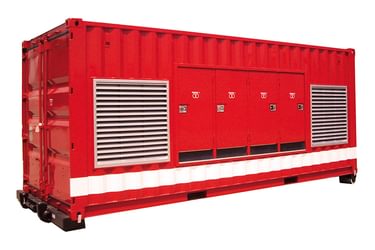

Transformator Middenspanning 20ft V2

Transformer - 6300 kVA

Power 6,300 kVA
Output Type 0
Primary 10/15/20 kV

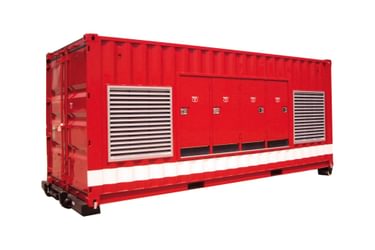

20ft container 160413 144749

Transformer - 5000 kVA

Power 5,000 kVA
Output Type 0
Primary 10/15/20 kV

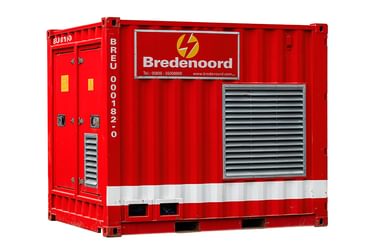

Transformer 1250 kVA

Transformer - 2500 kVA

Power 2,500 kVA
Output Type 0
Primary 10/15/20 kV

Transformer 1250 kVA

Transformer - 1600 kVA

Power 1,600 kVA
Output Type 0
Primary 6 kV

Transformer 1250 kVA

Transformer - 1250 kVA

Power 1,250 kVA
Type Medium Voltage
Primary 3 / 6 / 10 kV

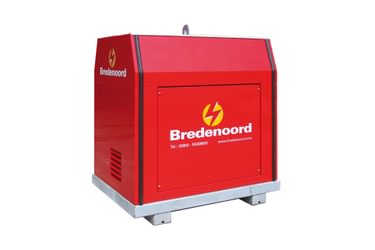

Trafo

Transformer - 1250 kVA (low voltage)

Power 1,250 kVA
Output Type 0
Primary 500/600/660/690 V + N

Trafo

Transformer - 1000 kVA

Power 1,000 kVA
Output Type 0
Primary 500/600/660/690 V + N

Trafo

Transformer - 630 kVA

Power 630 kVA
Output Type 0
Primary 500/600/660/690 V + N

Trafo

Transformer - 250 kVA

Power 250 kVA
Output Type 0
Primary 500/600/660/690 V + N

Trafo

Transformer - 100 kVA

Power 100 kVA
Output Type 0
Primary 500/600/660/690 V + N
